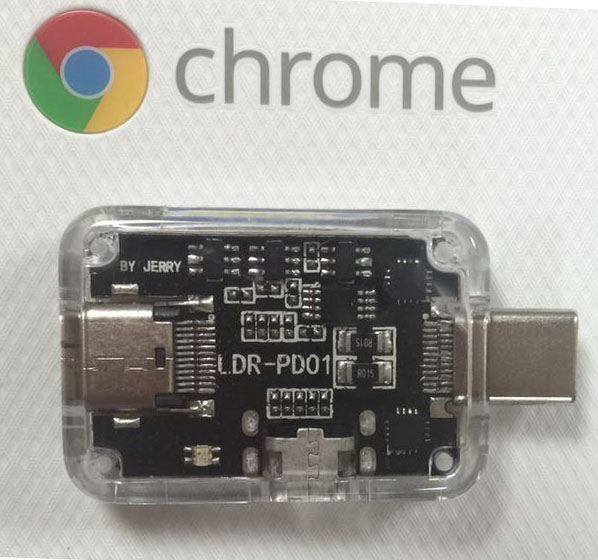

Legendary mass production based on GOOGLE TWINKIES USB PD protocol analyzer LDR-PD01

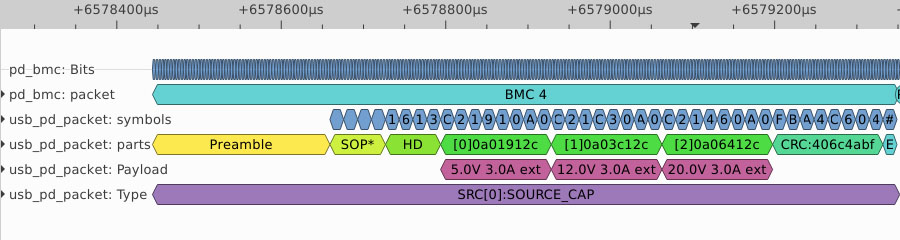

LDR-PD01 is based on google twinkies technology USB PD protocol analyzer, you can easily capture the process of USB PD protocol packets, and analysis. Please send an email to liuxin@legendary.net.cn for a quotation, indicating your company name and contact person and contact information.
Overview
This page describes a USB-PD sniffing dongle with Type-C connectors. The dongle can be supported by Chrome devices as part of a USB-Type C implementation.
Hardware Capabilities
Sniffing USB Power Delivery traffic on both Control Channel lines (CC1/CC2)
Transparent interposer on a USB Type-C connection
Monitoring VBUS and VCONN voltages and currents
Injecting PD packets on CC1 or CC2
Putting Rd/Rp/Ra resistors on CC1 or CC2
